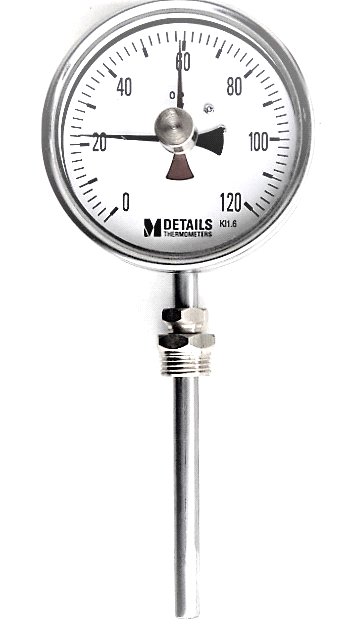

BIMETAL MAXIMUM RADIAL THERMOMETER
Application:
Where information for maximum temperature readings is required.
The main application is for high-voltage transformers to control the temperature of the cooling oil.
The mounted sliding red pointer on the window is moved from the indicating pointer and remains at the place of the maximum reading. The red pointer has to be manually moved to the starting position by a button on the window.
Bimetal Maximum Radial Thermometer
| Ingress Protection (IP) Rating: | IP65, IP66. |
| Material: | Stainless, 304 stainless steel. |
| Operating Conditions: | Under any operating conditions. |
| Temperature Range: | 0..100, 0..120, 0..160, 0..200 deg. C. |
| Accuracy: | 1.6, 2.0 |
| Stem Length: | from 60 мм to 160 мм |
| Connection: | ½“, ¾“ BSP, external. |
