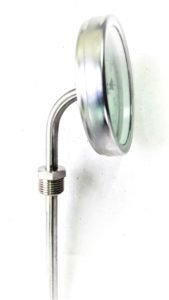

Bimetal Radial Thermometers – RT1 and RT2 with Extended Stem
RT1 Application: Fully stainless, fully hermetic. Ideal choice for manufacturers of food, chemical and other machinery and equipment where high accuracy of measurement, reliability, dust and moisture protection and deeper immersion of the probe, up to 1000 – 1200 mm, are required in the appliance.
IP (Ingress Protection) Rating: IP65, IP66.
RT2 Application: As RT1, but where no special protection against dust and moisture are required.
IP (Ingress Protection) Rating: IP64

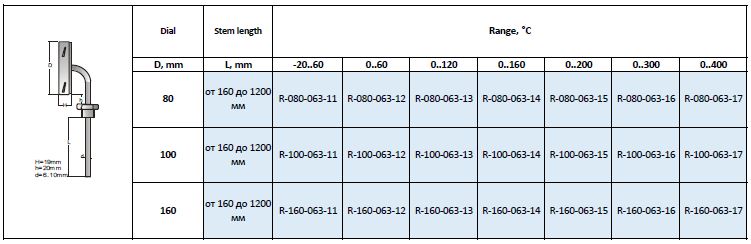

Standard Bimetal Long Lenght Radial Types – RT1 and RT2*
* On request, the parameters listed in the table can be changed.
This type is equipped with a new elastic mechanism. This is a new patented GPE-96 technology for the preparation and processing of the elastic stainless steel element, which allows the movement to be transformed to 90 degrees without deformation along the axis and without any influence in accuracy. The force of rotation F2 applied to the elastic metal element is about 40 times more than the bending force F1, as shown in the diagram. All welded internal elements make this type of thermometers especially reliable for long use under heavy duty conditions. High vibration stability is an important priority for this type of movements – thermometers. We give 5 years warranty for all our products with this performance.
