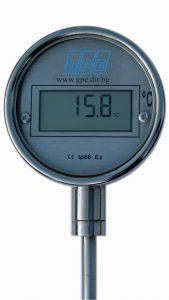

DPT3V2
Application:
For temperature measurement where high accuracy is required and under conditions of high dust, humidity, explosion hazard and corrosion activities.
It is specifically designed to be suitable for the pharmaceutical, chemical and food industries.
See also ... DPT3V2 data sheet
Characteristics of type DPT3V2
| Operating Conditions: | Under any operating conditions. |
| Mounting: | Direct (radial or axial) |
| Case: | 304 stainless steel, Ф100 мм |
| Ingress Protection (IP) Rating: | Hermetical, IP68 |
| Stem Material: | 304 stainless steel* |
| Display: | 4 digits LCD, 13 mm digits height |
| Power: | 3 V (2x1.5V) alkaline AA batteries, 1.5 Ah. 2-3 years lifespan |
| Input: | Pt100 (DIN IEC 751), 3-wire connection |
| Range: | On customer's request in the range of -50 to 600 °С. |
| Ambient conditions: | -20..+60 °С, 100% humidity proof |
| Connection: | External thread nut G1/2*, welded, st. st. 304* |
| Accuracy: | 0.25 % F.S. |
* On request, the parameters listed in the table can be changed.
